Technical Data

VEHICLE DIMENSIONS

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Height is measured with vehicle unladenVan version
VERSIONSMAXI
SHORT WHEELBASEMEDIUM WHEELBASELONG WHEELBASE
A (mm)172017201720
B (mm)172017201720
C (mm)2160-24802160-27352480-2860
D (mm)474950995599
E (mm)320032003700
F (mm)202420242024
G (mm)1441-17601441-20601441-1760
Dimensions change depending on the version within the above limits

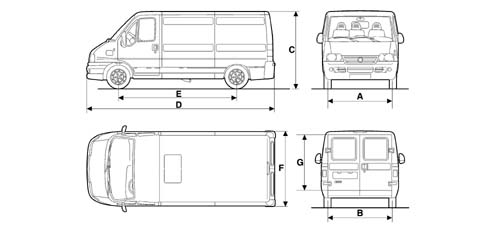

Manual illustration 244000003
VERSIONS1115
SHORT WHEELBASEMEDIUM WHEELBASESHORT WHEELBASEMEDIUM WHEELBASELONG WHEELBASE
A (mm)17201720172017201720
B (mm)17201720172017201720
C (mm)2154-24702150-27252150-24702150-27252470-2850
D (mm)47495099474950995599
E (mm)28503200285032003700
F (mm)20242024202420242024
G (mm)1441-17601441-17601441-17601441-20161441-1760

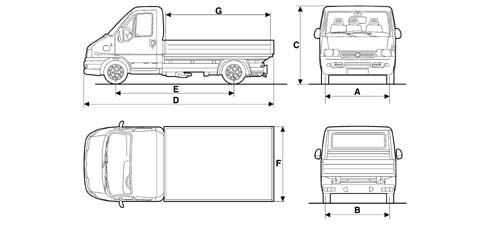

Truck versionDimensions change depending on the version within the above limits(*) A 2180 mm wide box may be supplied as an option
Manual illustration 244000004
VERSIONS1115MAXI
SHORT WHEELBASESHORT WHEELBASEMEDIUM WHEELBASELONG WHEELBASEMEDIUM WHEELBASELONG WHEELBASE
A (mm)172017201720172017201720
B (mm)172017201720172017201720
C (mm)210021002100210021252125
D (mm)483148315181586151815861
E (mm)285028503200370032003700
F(*)(mm)202420242024202420242024
G (mm)258525852080-29352585-34352080-29352585-3435
