FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Descriptions

LPG FILLER

Engines: 2.0 16V
Equipment / version codes: GPL [B73]
Engines: 2.0 16V
Equipment / version codes: GPL [B73]
The LPG filler is located on the left side of the vehicle in a special position in relation to the petrol filler.It has a single-acting valve in the actual filler body connected, by means of a 3/8" hose with tapered connectors, to the LPG tank.

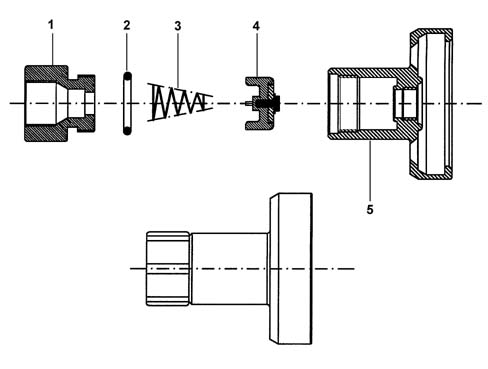

Manual illustration 244000177
1, Outlet connector2, Sealing ring3, Spring for piston4, Piston assembly5, Pressurizing socket
