- Check that the brake/clutch fluid in the reservoir is at the maximum level; if this is not the case, top up using the recommended fluid.- When topping up the brake/clutch fluid, remove the reservoir cap and top up until the maximum level is reached.
Description
Qty.
Component
Type
Classification
.
TUTELA TOP 4
Litri
BRAKE FLUID
Synthetic fluid
NHTSA. 116 DOT 4 ISO 4925 CUNA

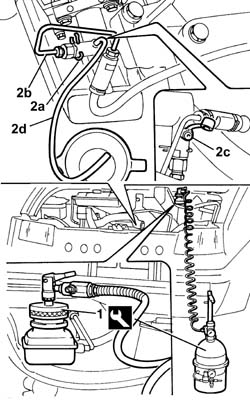

- The symbol on the container identifies synthetic type brake/clutch fluids, distinguishing them from mineral type fluids. The use of mineral type fluids irreparably damages the special rubber seals in the hydraulic brake/clutch system.- Position the vehicle on a lift.- Check that the brake/clutch fluid is between the MIN and MAX levels.1. Remove the brake/clutch fluid reservoir cap and connect the equipment to the reservoir.
Description
Code
Function
1
-
1.806.097.000
Hydraulic circuit air bleeding equipment
2. Lift up the spring (2a) and move the oil pipe (2b) back until the first click in order to open the bleed valve incorporated in the actuator, then open the cap (2c) and connect the recovery device (pipe and reservoir) to the bleed valve on the actuator (2d).- Open the fluid reservoir tap slowly.- Wait until all the air in the hydraulic system has escaped.- Push the fluid pipe towards the actuator and lock it in position using the retaining spring.
