- Place the head on the workbench.1. Fit the tool (1a) on the auxiliary unit (1b) and fasten it using the bolts (1c).
[symbol: attrezzi 08.jpg]
Description
Code
Function
-
Support
1.860.635.000
Auxiliary shaft assembly support
Engines: 2.8 JTD 8V
- Place the tool in the vice.1. Undo the centre fixing bolt (1a) and remove the heat exchanger/oil filter assembly (1b) complete with gasket (1c).
Engines: 2.8 JTD 8V
1. Undo the fixing bolts (1a) and remove the vacuum unit (1b) and the gasket (1c).2. Undo the fixing nuts (2a) and remove the pressure pump (2b).3. Undo the fixing bolts (3a) and remove the cover (3b).

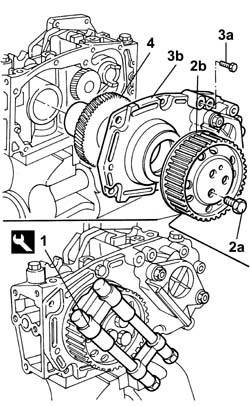

2. Undo the fixing bolts (2a) and remove the driven timing pulley (2b).3. Undo the fixing bolts (3a) and remove the front cover (3b).4. Release the main gear.
Engines: 2.8 JTD 8V
1. Undo the fixing bolts (1a) and remove the cover (1b).
Engines: 2.8 JTD 8V

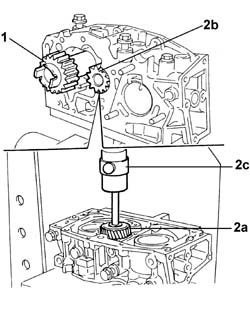

1. Release the oil pump driven gear.2. Remove the gear (2a) from the drive gear shaft (2b) for the oil pump using a hydraulic press (2c).
Engines: 2.8 JTD 8V
1. Undo the oil pressure relief valve cap.2. Release the spring (2a), the piston (2b) and the cylinder (2c).
- Using a torque wrench, check that the specifications of the oil pressure relief valve spring correspond to the recommended figures; if this it not the case, replace it.
[symbol: misure 01.jpg]
Subject
Value
-
Length
39 mm
-
Under a load of
10.5 +- 0.4 daNm
[symbol: misure 02.jpg]
Subject
Value
-
Length
32 mm
-
Under a load of
14.5 +-0.6 daNm
- Fit the spring, the piston and the cylinder for the oil pressure relief valve.- Tighten the cap to the recommended torque.
[symbol: coppie 03.jpg]
Value - daNm
Fastening
Component
Ø
-
6,5
Plug
-
M24

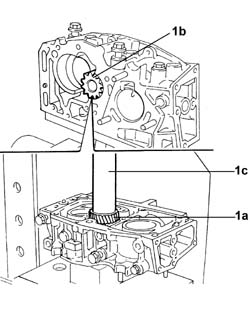

1. Fit the gear (1a) on the drive gear shaft (2b) for the oil pump using a hydraulic press (1c).
Engines: 2.8 JTD 8V
1. Fit the tool.
[symbol: attrezzi 10.jpg]
Description
Code
Function
1
Counter-torque
1.860.637.000
Oil pump drive gear fitting check
Engines: 2.8 JTD 8V
1. Fit the tool.
[symbol: attrezzi 15.jpg]
Description
Code
Function
1
Counter-torque
1.860.637.000
Oil pump drive gear fitting check

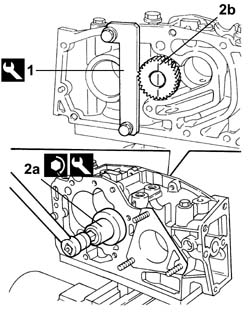

2. Using the tool (2a), tighten the oil pump drive gear (2b) to the recommended torque to check that it is correctly fitted on the shaft.
[symbol: attrezzi 16.jpg]
Description
Code
Function
2b
Counter-torque
1.860.636.000
Oil pump drive gear fitting check
[symbol: coppie 11.jpg]
Value - daNm
Fastening
Component
Ø
2b
11,3
-
oil pump drive gear
-
Engines: 2.8 JTD 8V
- Fit the oil pump driven gear.1. Check that the axial clearance between the gears and the pump casing plane is within the recommended limits.
[symbol: misure 05.jpg]
Subject
Value
1
End float
0.055 -0.099 mm
Engines: 2.8 JTD 8V
1. Check that the radial clearance between the gears and the pump casing is within the recommended limits.
[symbol: misure 06.jpg]
Subject
Value
1
Radial clearance
0.030 -0.085 mm
Engines: 2.8 JTD 8V

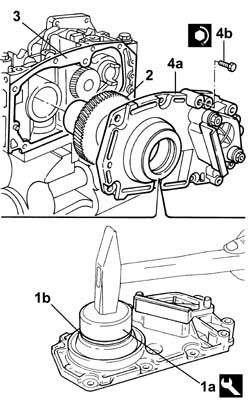

1. Using the tool (1a), fit the oil seal (1b) on the front cover.2. Fit the main gear.3. Fit the cover gasket.4. Fit the cover (4a) and tighten the fixing bolts (4b) to the recommended torque.
[symbol: attrezzi 17.jpg]
Description
Code
Function
1a
Fitting tool
1.860.627.000
Fit oil seal
[symbol: coppie 12.jpg]
Value - daNm
Fastening
Component
Ø
4b
2,3
Bolt
-
M8
Engines: 2.8 JTD 8V
- Apply the sealant.
[symbol: prodotti 01.jpg]
Description
Qty.
Component
Type
Classification
-
-
-
-
Silicone sealant
Dow Corning 7091
- Fit the oil pump cover and tighten the fixing bolts to the recommended torque.
[symbol: coppie 13.jpg]
Value - daNm
Fastening
Component
Ø
-
1,8
Bolt
-
M8
- Fit the pressure pump and tighten the fixing nuts to the recommended torque.
[symbol: coppie 14.jpg]
Value - daNm
Fastening
Component
Ø
-
2,5
Nut
-
M8
- Fit the side cover and tighten the fixing bolts to the recommended torque.
[symbol: coppie 15.jpg]
Value - daNm
Fastening
Component
Ø
-
1,8
Bolt
-
M8

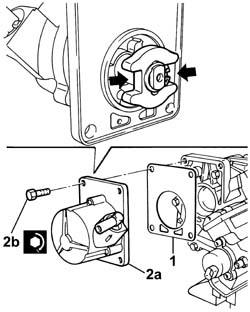

1. Fit the gasket.2. Fit the vacuum unit (2a) and tighten the fixing bolts (2b) to the recommended torque.
