1028H54 PISTON/CYLINDER LINER - R R

Engines: 2.3 JTD 16V

Removing

Refitting

- Remove the seals (1a) from the piston using the tool (1b).

	Description	Code	Function
1b	Extractor/Fitting tool	1.860.183.000	Extracting/fitting piston circlips

Engines: 2.3 JTD 16V

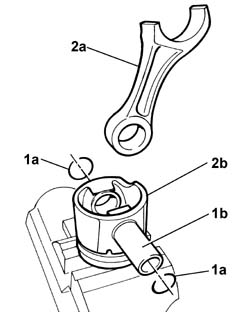

1. Using a suitable tool, remove the seals (1a) then extract the gudgeon pin (1b) from the piston.2. Separate the connecting rod (2a) from the piston (2b).

Engines: 2.3 JTD 16V

Refitting

Removing

- Join the connecting rods to the pistons, fit the gudgeon pins and secure them using the circlips.- Fit the piston rings on the piston using the special tool with the word TOP in the correct position.

	Description	Code	Function
.	Extractor/Fitting tool	1.860.183.000	Extracting/fitting piston circlips

Engines: 2.8 JTD 8V

Removing

Refitting

1. Remove the piston rings.2. Release the pin (2a) and separate the connecting rods (2b) from the pistons (2c).

Engines: 2.8 JTD 8V

Refitting

Removing

1. Join the connecting rods with the pistons so that the number stamped on the big end (1a) is facing opposite the reference (1b) on the piston.- Fit the pistons and fasten them using the piston rings.
