- Disconnect the negative battery terminal.1. Undo the fixing bolts (1a) and lift up the passenger compartment carpet (1b).
Engines: 2.0 16V
1. Undo the fixing bolts.2. Remove the protective cover for the submerged pump housing.
Engines: 2.0 16V

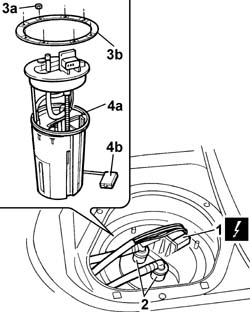

1. Disconnect the electrical connection for the submerged pump.
Description
Connector
1
Fuel pump and EPIC level gauge
N041
2. Disconnect the fuel supply and return pipes from the rapid connectors.3. Undo the fixing nuts (3a) and remove the ring nut (3b).4. Raise the submerged pump, release the perimeter seal (4a) from its housing, then remove the fuel pump (4b), complete with level gauge.
- Position the fuel pump in its housing in the tank.- Tighten the nuts fixing the submerged pump ring nut.- Connect the fuel supply and return pipe rapid connectors.- Connect the electrical connection for the fuel pump and level gauge.
Description
Connector
.
Fuel pump and EPIC level gauge
N041
- Tighten the bolts fixing the fuel pump protective cover.- Reposition the part of the passenger compartment carpet removed and tighten the fixing bolts.- Connect the negative battery terminal.
- Disconnect the negative battery terminal.1. Undo the fixing bolts (1a) and remove the passenger compartment carpet (1b).
Engines: 2.3 JTD 16V
1. Undo the fixing bolts.2. Remove the protective cover for the submerged pump housing.
Engines: 2.3 JTD 16V

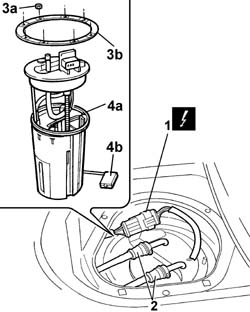

1. Disconnect the electrical connection for the submerged pump.
Description
Connector
1
Fuel pump and EPIC level gauge
N041
2. Disconnect the fuel supply and return pipes from the rapid connectors.3. Undo the fixing nuts (3a) and remove the ring nut (3b).4. Raise the submerged pump, release the perimeter seal (4a) from its housing, then remove the fuel pump (4b), complete with level gauge.
- Position the fuel pump in its housing in the tank.- Tighten the nuts fixing the submerged pump ring nut.- Connect the fuel supply and return pipe rapid connectors.- Connect the electrical connection for the fuel pump and level gauge.
Description
Connector
.
Fuel pump and EPIC level gauge
N041
- Tighten the bolts fixing the fuel pump protective cover.- Reposition the part of the passenger compartment carpet removed and tighten the fixing bolts.- Connect the negative battery terminal.
- Disconnect the negative battery terminal.1. Undo the fixing bolts (1a) and lift up the passenger compartment carpet (1b).
Engines: 2.0 JTD 8V
1. Undo the fixing bolts.2. Remove the protective cover for the submerged pump housing.
Engines: 2.0 JTD 8V
1. Disconnect the electrical connection for the submerged pump.
Description
Connector
1
Fuel pump and EPIC level gauge
N041
2. Disconnect the fuel supply and return pipes from the rapid connectors.3. Undo the fixing nuts (3a) and remove the ring nut (3b).4. Raise the submerged pump, release the perimeter seal (4a) from its housing, then remove the fuel pump (4b), complete with level gauge.
- Position the fuel pump in its housing in the tank.- Tighten the nuts fixing the submerged pump ring nut.- Connect the fuel supply and return pipe rapid connectors.- Connect the electrical connection for the fuel pump and level gauge.
Description
Connector
.
Fuel pump and EPIC level gauge
N041
- Tighten the bolts fixing the fuel pump protective cover.- Reposition the part of the passenger compartment carpet removed and tighten the fixing bolts.- Connect the negative battery terminal.
- Disconnect the negative battery terminal.1. Undo the fixing bolts (1a) and lift up the passenger compartment carpet (1b).
Engines: 2.8 JTD 8V
1. Undo the fixing bolts.2. Remove the protective cover for the submerged pump housing.
Engines: 2.8 JTD 8V
1. Disconnect the electrical connection for the submerged pump.
Description
Connector
1
Fuel pump and EPIC level gauge
N041
2. Disconnect the fuel supply and return pipes from the rapid connectors.3. Undo the fixing nuts (3a) and remove the ring nut (3b).4. Raise the submerged pump, release the perimeter seal (4a) from its housing, then remove the fuel pump (4b), complete with level gauge.
- Position the fuel pump in its housing in the tank.- Tighten the nuts fixing the submerged pump ring nut.- Connect the fuel supply and return pipe rapid connectors.- Connect the electrical connection for the fuel pump and level gauge.
Description
Connector
.
Fuel pump and EPIC level gauge
N041
- Tighten the bolts fixing the fuel pump protective cover.- Reposition the part of the passenger compartment carpet removed and tighten the fixing bolts.- Connect the negative battery terminal.
