FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

1042A21 CNG CANISTER MOUNTING BRACKET - R.R.

Engines: 2.0 16V
Engines: 2.0 16V

RemovingManual illustration 20

RefittingManual illustration 21
Position the vehicle on the lift.Op. 1042E60 CNG CYLINDER UNIT PROTECTION SEAL - R R1. Undo the threaded spacer (1a) and the nut (1b) underneath.2. Remove the canister mounting bracket.
Manual illustration 244006715
Engines: 2.0 16V

RefittingManual illustration 21

RemovingManual illustration 20
Fit the CNG canister mounting bracket and tighten the nut.1. Tighten the fixing nuts (1a) and (1b) to torque and then the spacers securing the CNG canister brackets.
[symbol: coppie 01.tif]Value daNmFasteningComponentØ
1a4Nut-M12
[symbol: coppie 01.tif]Value daNmFasteningComponentØ
1b8Nut-M12

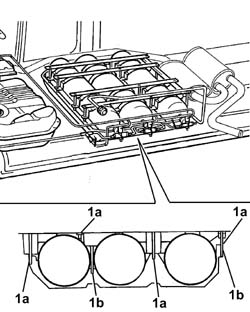

Manual illustration 244006718
Engines: 2.0 16V
Op. 1042E60 CNG CYLINDER UNIT PROTECTION SEAL - R RRemove the vehicle from the lift.
