1058A64 CNG SUPPLY PIPE FROM REDUCTION UNIT TO SINGLE MANIFOLD - R&R

Engines: 2.0 16V

Removing

Refitting

Disconnect the negative battery terminal.

Engines: 2.0 16V
Production: Through February 2005 [¢]

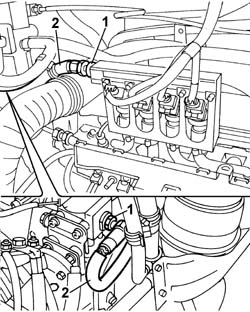

Drain the low pressure circuit as described in the operation:Op. 1042A02 METHANE SYSTEM SAFETY SET UP1. Unscrew the connectors of the pipe from the pressure reduction unit and single manifold pipe.2. Remove the CNG supply pipe from reduction unit to single manifold.

Engines: 2.0 16V
Production: From March 2005 [p]

Drain the low pressure circuit as described in the operation:Op. 1042A02 METHANE SYSTEM SAFETY SET UP1. Unscrew the connectors of the pipe from the pressure reduction unit and single manifold pipe.2. Remove the CNG supply pipe from reduction unit to single manifold.

Engines: 2.0 16V

Refitting

Removing

Fit the CNG supply pipe and tighten the connectors to the pressure reduction unit and single manifold pipe.

[symbol: coppie.tif]	Value daNm	Fastening	Component	Ø
-	2.8	Connector	-	-

Move the CNG cut-off solenoids to open position by hand and check system is efficient.
