1. Undo the bolts fixing the power assisted steering system reservoir mounting bracket.2. Remove the power assisted steering fluid reservoir, complete with bracket, from the housing.
Engines: 2.3 JTD 16V
1. Disconnect the bands retaining the coolant pipe to the reservoir.2. Release the electrical connection for the coolant reservoir from the housing.3. Undo the nuts fixing the expansion tank and move it away from the work area.
Engines: 2.3 JTD 16V
See in Op. 1060F36- Disconnect the electrical connections for the injectors.
Description
Connector
.
Injector
N070A
Description
Connector
.
Injector
N070B
Description
Connector
.
Injector
N070C
Description
Connector
.
Injector
N070D

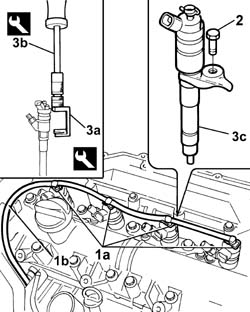

1. Press the fastening springs (1a) and disconnect the fuel recirculation pipe (1b) from the injectors.2. Undo the bolts fixing the brackets.3. Using the extractor (3a) and the special tool (3b), remove the injectors (3c) from the seats in the camshaft housing.
- Fit the injectors in the seats in the camshaft housing.- Tighten the bolts fixing the brackets.
Value - daNm
Fastening
Component
Ø
.
2.5
Bolt
INJECTORS(DIESEL)
M8
- Fasten the recirculation pipe on the injectors using securing bands. See in Op. 1060F36- Connect the electrical connections disconnected previously.
Description
Connector
.
Injector
N070A
Description
Connector
.
Injector
N070B
Description
Connector
.
Injector
N070C
Description
Connector
.
Injector
N070D
- Fit the engine coolant reservoir and tighten the nuts fixing it to the bodyshell.- Fasten the electrical connection in the housing on the tank.- Connect the bands retaining the coolant pipes to the cylinder head and the radiator.- Fit the power assisted steering fluid reservoir complete with bracket and tighten the fixing bolts.
See in Op. 1016A10 See in Op. 1060F361. Disconnect the electrical connections for the injectors.
Description
Connector
1
Injector
N070A
Description
Connector
1
Injector
N070B
Description
Connector
1
Injector
N070C
Description
Connector
1
Injector
N070D
2. Disconnect the fuel recirculation pipe attachment.3. Undo the fixing bolt (3a) and remove the injector (3b).- Carry out the same operation on all the injectors

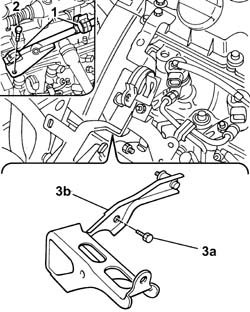

- Disconnect the negative battery terminal.1. Open the fastening bands and release the heater engine coolant pipe from the housing.2. Undo the bolt securing the right rigid pipe.3. Loosen the bolts (3a) fixing the bracket (1b) to the pressure pump support.
Engines: 2.0 JTD 8V

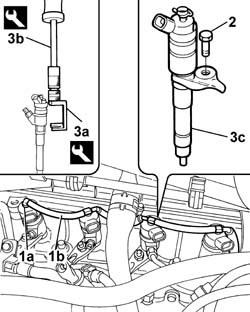

See in Op. 1060F361. Press the fastening springs (1a) and disconnect the fuel recirculation pipe (1b) from the injectors.2. Undo the bolts fixing the brackets.3. Using the extractor (3a) and the special tool (3b), remove the injectors (3c) from the seats in the camshaft housing.
- Check the condition of the injectors.- Position the injectors complete with brackets.- Tighten the fixing nuts to torque.
Value - daNm
Fastening
Component
Ø
.
2,3
Nut
INJECTORS(DIESEL)
-
- Connect the recirculation pipe springs to the injectors. See in Op. 1060F36- Lock the bolts fixing the bracket to the pressure pump support.- Lock the bolt fixing the rigid coolant recirculation pipe.- Secure the heater engine coolant pipe in place and secure it using the bands.- Connect the negative battery terminal.
