1060F52 PIPE TO RETURN MANIFOLD - R R

Engines: 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.3 JTD 16V

RemovingManual illustration 20

RefittingManual illustration 21
Op. 7055B54 UNDER-ENGINE GUARD - R R1. Disconnect the pipe from the coupling for the return pipes to the fuel return manifold on the pressure pump.2. Push the springs (2a) manually and disconnect the pipe from the connectors (2b) on the injectors, then remove it.
Manual illustration 244002850
Engines: 2.3 JTD 16V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the fuel recovery pipe and secure it to the injectors.- Connect the pipe to the coupling for the return pipes to the fuel return manifold on the pressure pump. Op. 7055B54 UNDER-ENGINE GUARD - R R
Engines: 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
See in Op. 1048B14 See in Op. 1016A101. Open the retaining band (1a) and disconnect the connector (1b).2. Disconnect the pipe (2a) from the fuel recovery manifold (2b).3. Remove the pipe from the injectors to the fuel recovery manifold.
Manual illustration 244002851
Engines: 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the pipe on the fuel return manifold pipe.- Connect the connectors to the injector and secure them using the fastener. See in Op. 1016A10 See in Op. 1048B14
Engines: 2.0 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

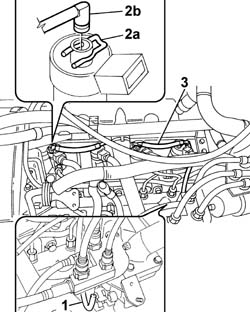

1. Disconnect the pipe from the injectors to the fuel recovery manifold from the manifold.2. Push the springs (2a) manually and disconnect the pipe from the connectors (2b) on the injectors.3. Remove the pipe from the injectors to the recovery manifold.
Manual illustration 244002852
Engines: 2.0 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the pipe from the injectors to the recovery manifold.- Connect the springs for the pipe to the injectors and connect the pipe to the return manifold.
