1068A20 ACCELERATOR PEDAL WITH BUILT-IN POTENTIOMETER - R R

Engines: 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal.1. Undo the bolts fixing the pedal to the floor.2. Disconnect the electrical connection for the accelerator pedal potentiometer.
Manual illustration 244000463DescriptionConnector
2Accelerator pedal potentiometerK055
3. Remove the accelerator pedal with the integrated potentiometer.
Manual illustration 244002945
Engines: 2.0 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the accelerator pedal with the integrated potentiometer.- Connect the electrical connection for the accelerator pedal potentiometer.
Manual illustration 244000463DescriptionConnector
.Accelerator pedal potentiometerK055
- Tighten the bolts fixing the pedal to the floor.- Connect the negative battery terminal. Op. 0520G65 ACCELERATOR CONTROL PEDAL - ADJUST END TRAVEL WITH FDC
Engines: 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal.1. Undo the bolts fixing the pedal to the floor.2. Disconnect the electrical connection for the accelerator pedal potentiometer.
Manual illustration 244000463DescriptionConnector
2Accelerator pedal potentiometerK055
3. Remove the accelerator pedal with the integrated potentiometer.

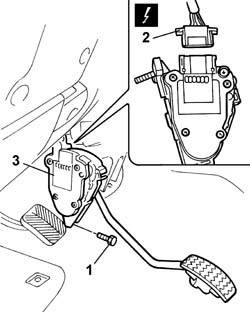

Manual illustration 244002946
Engines: 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the accelerator pedal with the integrated potentiometer.- Connect the electrical connection for the accelerator pedal potentiometer.
Manual illustration 244000463DescriptionConnector
.Accelerator pedal potentiometerK055
- Tighten the bolts fixing the pedal to the floor.- Connect the negative battery terminal. Op. 0520G65 ACCELERATOR CONTROL PEDAL - ADJUST END TRAVEL WITH FDC
Engines: 2.3 JTD 16V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal.1. Undo the bolts fixing the pedal to the floor.2. Disconnect the electrical connection for the accelerator pedal potentiometer.
Manual illustration 244000463DescriptionConnector
2Accelerator pedal potentiometerK055
3. Remove the accelerator pedal with the integrated potentiometer.
Manual illustration 244002947
Engines: 2.3 JTD 16V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the accelerator pedal with the integrated potentiometer.- Connect the electrical connection for the accelerator pedal potentiometer.
Manual illustration 244000463DescriptionConnector
.Accelerator pedal potentiometerK055
- Tighten the bolts fixing the pedal to the floor.- Connect the negative battery terminal. Op. 0520G65 ACCELERATOR CONTROL PEDAL - ADJUST END TRAVEL WITH FDC
