1072B11 INTAKE MANIFOLD - R R AND REPLACE GASKET FOR VERSIONS WITH AIR CONDITIONER

Engines: 2.8 JTD 8V
Engines: 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY See in Op. 1088B10 See in Op. 1080C17 See in Op. 1080C16 See in Op. 1048A21 See in Op. 1048B22 See in Op. 1048B14 Op. 1088D67 COOLANT PIPE BETWEEN COOLANT RESERVOIR AND THERMOSTAT - R.R.1. Undo the fixing bolts (1a) and move the power assisted steering reservoir complete with bracket (1b) away from the work area.
Manual illustration 244002948
Engines: 2.8 JTD 8V

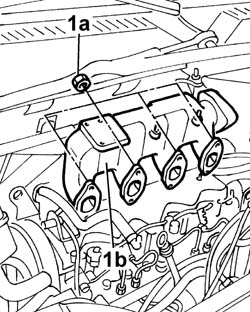

See in Op. 1016A10 Op. 7055B54 UNDER-ENGINE GUARD - R R See in Op. 1080C10 Op. 1080C50 PIPE CARRYING EXHAUST GAS TO E.G.R. VALVE - R + R See in Op. 1080C801. Undo the fixing nuts (1a) and remove the intake manifold (1b).
Manual illustration 244002949
Engines: 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit a new intake manifold gasket in place.- Fit the intake manifold in position and tighten the fixing nuts checking the torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.2,5NutINLET MANIFOLDM8
See in Op. 1080C80 Op. 1080C50 PIPE CARRYING EXHAUST GAS TO E.G.R. VALVE - R + R See in Op. 1080C10 Op. 7055B54 UNDER-ENGINE GUARD - R R See in Op. 1016A10 Op. 1088D67 COOLANT PIPE BETWEEN COOLANT RESERVOIR AND THERMOSTAT - R.R. See in Op. 1048B14 See in Op. 1048B22 See in Op. 1048A21 See in Op. 1080C16 See in Op. 1080C17 See in Op. 1088B10 Op. 0010T20 COOLANT CHECK DENSITY AND TOP UP IF NECESSARY- Position the power assisted steering fluid reservoir and tighten the bolts fixing it to the crossmember.
