1076A52 EXHAUST PIPE REAR HEAT SHIELD - R.R.

Engines: 2.0 16V

Removing

Refitting

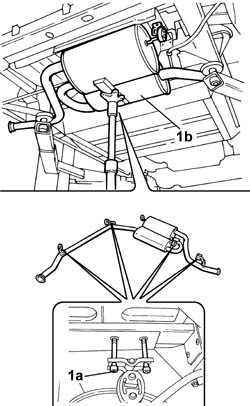

Position the vehicle on the lift.Position a hydraulic device underneath the exhaust pipe to support it.1. Undo the bolts (1a) for the brackets with the flexible buffer supporting the exhaust silencer (1b) and secure the exhaust pipe.Remove the hydraulic support.

Engines: 2.0 16V

1. Undo the retaining bolts (1a) and remove the heat shield (1b).

Engines: 2.0 16V

Refitting

Removing

Fit the heat shield and tighten the fixing bolts.

[symbol: coppie.tif]	Value daNm	Fastening	Component	Ø
-	2	Bolts	-	M8

Raise the exhaust pipe and tighten the bolts fixing the brackets with flexible buffers to the bodyshell to torque.

[symbol: coppie.tif]	Value daNm	Fastening	Component	Ø
-	2.4	Bolts	-	M8

Remove the vehicle from the lift.
