1080D22 OIL VAPOUR PIPE FROM CAM COVER TO INTAKE R R

Engines: 2.0 JTD 8V
Engines: 2.0 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

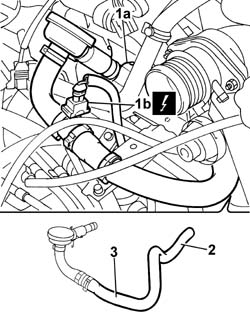

- Disconnect the negative battery terminal.1. Press the retaining spring (1a) and disconnect the electrical connection (1b) for the engine oil vapour pipe.
Manual illustration 244000463DescriptionConnector
1bOil vapour heating resistanceO007A
2. Disconnect the engine oil vapour pipe from the air intake pipe between the filter and the turbocharger.3. Remove the oil vapour pipe.
Manual illustration 244003020
Engines: 2.0 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the engine oil vapour pipe and connect it to the tappet cover and to the air intke pipe from the filter to the turbocharger.- Connect the electrical connection for the engine oil vapour heating resistance.
Manual illustration 244000463DescriptionConnector
.Oil vapour heating resistanceO007A
- Connect the negative battery terminal.
