1080E22 FUEL VAPOUR ACTIVE CHARCOAL FILTER MOUNTING - R.R.

Removing

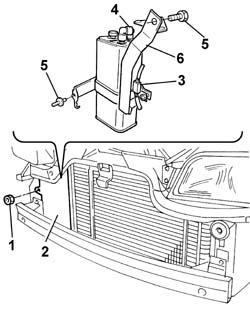

Op.4450B12RUOTE (DUE) ANTERIORI - S.R.Op.7055B64PROTEZIONE PARAPOLVERE VANO MOTORE NEL PASSARUOTA ANTERIORE (UNA), SX O DX - S.R.Op.7055B54PROTEZIONE/RIPARO SOTTOMOTORE - S.R.Op.7210E10S.R. PARAURTI ANTERIOREOp.1080E28ELETTROVALVOLA DI CONSENSO PASSAGGIO VAPORI COMBUSTIBILE ALL'ASPIRAZIONE - S.R.1. Undo the nut and the bolts fixing the plastic shield.2. Remove the plastic shield.3. Remove the vapour flow enablement solenoid valve from the housing and release it from the work area.4. Disconnect the rapid connectors from the active charcoal filter.5. Undo the fixing bolt on the side member and the fixing bolt on the headlamp crossmember.6. Remove the bracket complete with active charcoal filter.

- Separate the bracket from the active charcoal filter at the bench.

Refitting

- Fit the bracket on the active charcoal filter.- Fit the bracket complete with active charcoal filter.- Tighten the fixing bolt on the headlamp crossmember to torque.- Tighten the fixing bolt on the side member to torque.- Connect the rapid connectors to the active charcoal filter.- Fit the vapour flow enablement solenoid valve in position.- Fit the plastic shield.- Tighten the nut and the bolts fixing the plastic shield.Op.1080E28ELETTROVALVOLA DI CONSENSO PASSAGGIO VAPORI COMBUSTIBILE ALL'ASPIRAZIONE - S.R.Op.7210E10S.R. PARAURTI ANTERIOREOp.7055B54PROTEZIONE/RIPARO SOTTOMOTORE - S.R.Op.7055B64PROTEZIONE PARAPOLVERE VANO MOTORE NEL PASSARUOTA ANTERIORE (UNA), SX O DX - S.R.Op.4450B12RUOTE (DUE) ANTERIORI - S.R.
