- Position the vehicle on a lift. Op. 7055B54 UNDER-ENGINE GUARD - R R See in Op. 1088E12 See in Op. 1088E131. Disconnect the recirculation pipe from the engine coolant reservoir.
Engines: 2.0 JTD 8V
1. Disconnect the coolant lower sleeve (1a) and upper sleeve (1b) from the radiator and drain the engine coolant system.
Engines: 2.0 JTD 8V
1. Undo the fixing bolts.2. Remove the front grille.
Engines: 2.0 JTD 8V

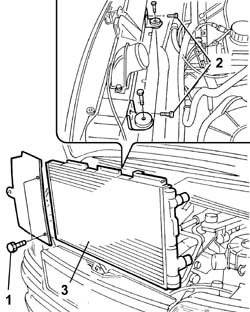

1. Working via the front grille compartment, undo the bolts fixing the plastic guard to the radiator.2. Undo the upper radiator retaining bolts.3. Remove the engine cooling radiator from the upper part of the engine bay.
- Position the vehicle on a lift. Op. 7055B54 UNDER-ENGINE GUARD - R R See in Op. 1088E12 See in Op. 1088E131. Disconnect the recirculation pipe from the engine coolant reservoir.
Engines: 2.3 JTD 16V
1. Undo bolts (1a) securing air heat exchanger upper bracket (1b) to the upper beam.2. Raise the air heat exchanger and remove.
Engines: 2.3 JTD 16V
1. Disconnect the coolant lower sleeve (1a) and upper sleeve (1b) from the radiator and drain the engine coolant system.
Engines: 2.3 JTD 16V

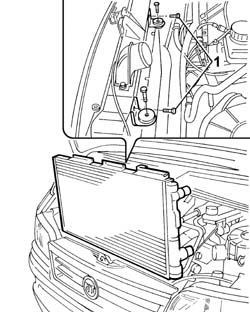

1. Undo the upper radiator retaining bolts.2. Remove the engine cooling radiator from the upper part of the engine bay.
- Fit the engine cooling radiator in the upper part of the engine bay.- Tighten the bolts securing the upper radiator brackets to the beam to torque.
Value - daNm
Fastening
Component
Ø
.
(Beam) 2
Bolts
ENGINE RADIATOR
M8
- Tighten the bolts securing the upper radiator brackets to the radiator to torque.
Value - daNm
Fastening
Component
Ø
.
(Radiator) 2
Bolts
ENGINE RADIATOR
M8
- Connect the upper and lower cooloant sleeves to the radiator.- Fit the air-air heat exchanger in its seat and tighten the bolt securing the bracket to the beam to torque.
