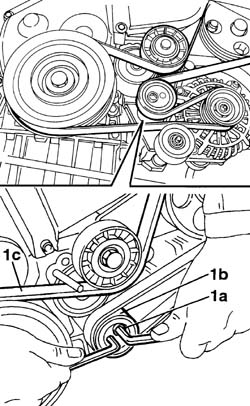

- Position the vehicle on the lift. Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 4450B04 RIGHT FRONT WHEEL R R1. The single belt tensioner is positioned as illustrated in the diagram when the belt is new, in other words when the fixed reference (1a) and the moving reference (1b) are aligned and it is possible to insert a pin in the opening (1c).
Engines: 2.0 JTD 8V

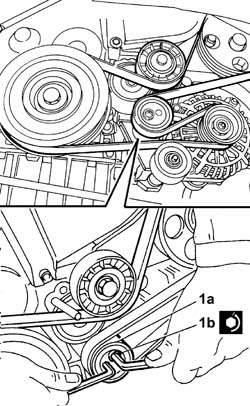

1. The single belt tensioner is positioned as illustrated in the diagram when the belt is worn, in other words when the fixed reference (1a) and the moving reference (1b) are aligned on the second moving reference.
Engines: 2.0 JTD 8V

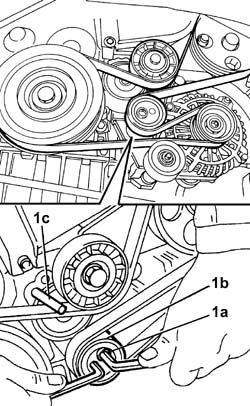

1. Loosen the bolt (1a) then, using a spanner with a ¼" socket, act on the tensioner (1b) until it is possible to introduct a 4 mm diameter pin (1c) in the reference opening.
Engines: 2.0 JTD 8V
1. Leave the tensioner (1b) and tighten the bolt (1a) temporarily, then remove the single drive belt (1c).

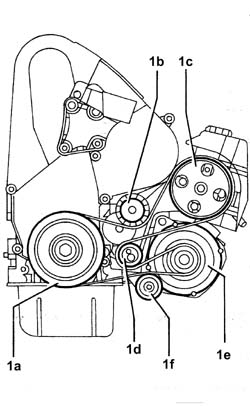

1. Fit the single drive belt following the order illustrated; (1a) crankshaft pulley, (1b) tensioner with wear indicator, (1c) power assisted steering pump, (1d) tensioner with tension adjustment, (1e) alternator, (1f) idler.
Engines: 2.0 JTD 8V

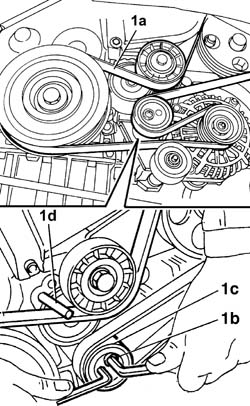

1. Fit the accessories drive belt (1a), loosen the bolt (1b) then, using a spanner with a ¼" socket, act on the tensioner (1c) until it is possible to introduce a 4 mm diameter pin (1d) in the reference opening.
Engines: 2.0 JTD 8V
1. Leave the tensioner (1a) and tighten the bolt (1b) to the recommended torque.
