Procedures

2110D26 DIFFERENTIAL INNER CASE BEARINGS - REPLACE WITH DIFFERENTIAL INNER CASE REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Removing

- Remove the mileometer gear.1. Remove the roller bearing (1a), differential side, using tools (1b), (1c) and (1d).

[symbol: TOOLS 23.jpg]	Description	Code	Function
1b	Reaction flange for removing differential bearings	1.860.944.000	Removing differential bearings

[symbol: TOOLS 24.jpg]	Description	Code	Function
1c	Leg for differential bearing removal tool 1840005001.	1.840.005.309	Removing differential bearings

[symbol: TOOLS 25.jpg]	Description	Code	Function
1d	Universal extractor for removing layshaft front bearing and differential bearings	1.840.005.001	Removing differential bearings

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Remove the roller bearing (1a), ring gear side, using tools (1b), (1c) and (1d).

[symbol: TOOLS 26.jpg]	Description	Code	Function
1b	Reaction flange for removing differential bearings	1.860.944.000	Removing differential bearings

[symbol: TOOLS 27.jpg]	Description	Code	Function
1c	Universal extractor for removing layshaft front bearing and differential bearings	1.840.005.001	Removing differential bearings

[symbol: TOOLS 28.jpg]	Description	Code	Function
1d	Feet for layshaft front bearing removal tool 1840005001	1.840.005.302	Removing differential bearings

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

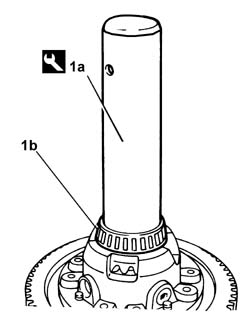

1. Use tool (1a) to fit the taper roller bearing (1b), ring gear side.

[symbol: TOOLS 29.jpg]	Description	Code	Function
1a	Fit the differential bearings	1.860.943.000	Fit the differential bearing, ring gear side

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Use tool (1a) to fit the taper roller bearing (1b), differential side.

[symbol: TOOLS 30.jpg]	Description	Code	Function
1a	Fit the differential bearings	1.860.943.000	Fit the differential bearing, ring gear side

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

- Fit the mileometer gear.
