3310B30 REAR BRAKE DISCS R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Remove the rear wheel.1. Release the protective boots.2. Undo the brake caliper fixing bolts.
Manual illustration 244003812
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

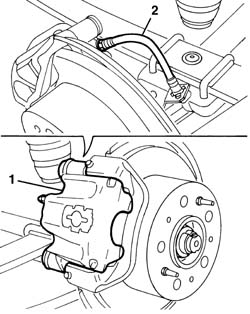

1. Move the brake caliper slightly.2. Undo the hydraulic system pipe from the brake caliper, collecting the brake fluid that comes out.
Manual illustration 244003813
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. If necessary, remove the brake pads (1), then unto the bolts (1b) and remove the brake back plate (1c).
Manual illustration 244003814
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- If removed, position the brake back plate and tighten the new bolts.
Manual illustration 244000559Value - daNmFasteningComponentØ
.17 -25 daNmBoltREAR BRAKE CALIPER BRACKETM14x1.5
- Tighten the hydraulic system pipe to the brake caliper.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1.2 -2.2 daNmNutBRAKING SYSTEM PIPE CONNECTORSM10x1
- Place the brake caliper in position.- Tighten the new brake caliper fixing bolts.- Fit the protective boots. Op. 0010T65 HYDRAULIC BRAKE SYSTEM BLEED AIR- Refit the wheel.- Check that the brakes are working.
