3310B50 REAR BRAKE DISCS R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Removing

Refitting

- Remove the rear wheel.1. Release the protective boot.2. Undo the brake caliper fixing bolts.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

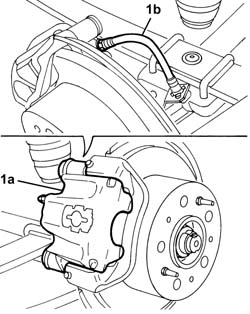

1. Remove the brake caliper (1a) from the work area taking care not to damage the oil pip (1b).

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. If necessary, remove the brake pads (1), then unto the bolts (1b) and remove the brake back plate (1c).

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Undo the bolts.2. Remove the brake disc.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. The minimum permitted thickness for the brake disc after wear is given below; if the figure is below this, the disc should be replaced.- If there is deterioration or deep grooves, the surfaces of the brake disc can be skimmed using a grinding machine. when the operation is completed the thickness of the brake disc should not be less than the one given below.- Disc with outer diameter of 280 mm or 300 mm and thickness of 16 mm.

	Subject	Value
.	Rear brake discs	mm
-	Nominal thickness	16.2 ÷ 15.9

	Subject	Value
.	Rear brake discs	mm
-	Minimum thickness after grinding	14.55

	Subject	Value
.	Rear brake discs	mm
-	Minimum permitted thickness after wear	14.2

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Refitting

Removing

- Clean the hub flange where the disc is fitted.1. Place the brake disc in position.2. Tighten the fixing bolts to the recommended torque.

	Value - daNm	Fastening	Component	Ø
.	1.1 - 2.0	Bolt	FRONT BRAKE DISCS	M8

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Check the brake disc non alignment in relation to the rotation axis, this figure should be measured about 2 mm from the outer edge of the disc.

	Subject	Value
.	Rear brake discs	mm
-	Brake disc non alignment	< 0.15

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

- If removed, position the brake back plate and tighten the new bolts.

	Value - daNm	Fastening	Component	Ø
.	17 -25 daNm	Bolt	REAR BRAKE CALIPER BRACKET	M14x1.5

- Place the brake caliper and brake pads in position.- Tighten the new brake caliper fixing bolts.- Fit the protective boots.- Refit the wheel.- Remove the vehicle from the lift.- Check that the brakes are working.
