3310B60 REAR BRAKE PADS - REPLACE - INCLUDES HANDBRAKE ADJUSTMENT IF NECESSARY

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Remove the the rear wheel.1. Release the protective boot.2. Undo the brake caliper fixing bolts.
Manual illustration 244003825
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

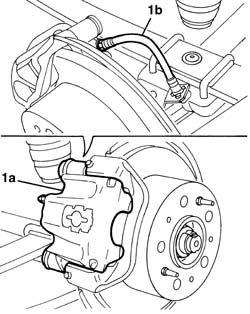

1. Move the caliper (1a) slightly without disconnecting the hydraulic system pipe (1b).
Manual illustration 244003826
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Remove the brake pads.
Manual illustration 244003827
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Place the brake pads in position.- Place the brake caliper in position.- Tighten the new brake caliper fixing bolts.- Fit the protective boots.- Refit the wheel.- Check that the brakes are working.
