FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

3330B23 BRAKE PEDAL - R R FOR RHD VERSIONS

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Position the vehicle on the lift.- Disconnect the negative battery lead.
Manual illustration 244000463DescriptionConnector
.BatteryA001B
1. Lift up the steering wheel adjustment lever.2. Undo the panel fixing bolts.3. Remove the panel, releasing it from the inner retainers.
Manual illustration 244003844
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 1068A21 ACCELERATOR PEDAL WITH INTEGRATED POTENTIOMETER - R.R. FOR RIGHT DRIVE VERSIONS Op. 5550D10 BRAKE LIGHT SWITCH - R+R- Proceed from the inside of the passenger compartment.1. Remove the spring fastening the brake servo push rod to the brake pedal.2. Remove the pin from the brake pedal.3. Undo the nuts fixing the brake servo to the pedal assembly.- Move the pedal assembly as far away as possible from the bodyshell.
Manual illustration 244003845
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Open the bonnet and undo the pedal assembly fixing nuts, located above the brake servo.
Manual illustration 244003846
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

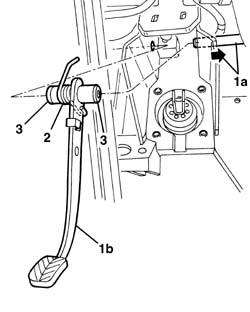

1. Working from inside the passenger compartment, move the pedal support slightly backwards and extract the pin (1a) until the brake pedal (1b) is removed.2. Keep the pedal return spring.3. If necessary, extract the bushes (which are a press-fit).
Manual illustration 244003847
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20

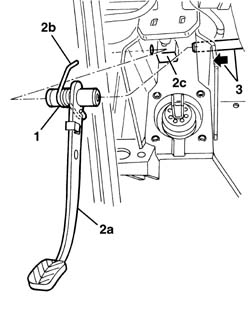

- Check that the pedal assembly is not damaged.- If the bushes have been removed, refit them (press-fit).1. Position the return spring on the pedal.2. Place the brake pedal (2a) in position with the end (2b) of the return spring fitted under the pedal support mounting (2c).3. Fit the brake pedal pin in the housing.
Manual illustration 244003848
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the pedal assembly fixing nuts.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1.5Nutpedal unitM8
- Close the bonnet.- Position the brake servo rod on the brake pedal and insert the pin in the housing, then secure it using the retaining spring. Op. 5550D10 BRAKE LIGHT SWITCH - R+R Op. 1068A21 ACCELERATOR PEDAL WITH INTEGRATED POTENTIOMETER - R.R. FOR RIGHT DRIVE VERSIONS- Position the panel, engaging the inner retainers.- Tighten the panel fixing bolts.- Lock the steering wheel adjustment lever.- Check that the brake pedal and the brake servo are working properly.- Connect the negative battery lead.
Manual illustration 244000463DescriptionConnector
.BatteryA001B
- Remove the vehicle from the lift.
