3330E42 INTERMEDIATE HOSE TO REAR BRAKES - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

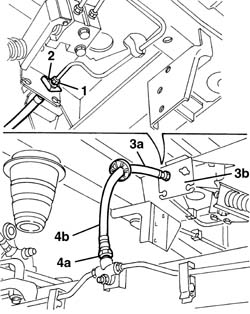

- Position the vehicle on a lift.- Raise the vehicle.1. Working underneath the vehicle in the area of the rear axle, undo the connector for the rigid brake pipe and let the hydraulic fluid drain into a suitable container.2. Release the retaining spring.3. Release the flexible pipe (3a) from the housing in the support (3b).4. Undo the threaded connector (4a) and keep the flexible brake pipe (4b).
Manual illustration 244003885
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Check that the flexible pipe is not damaged.- Tighten the threaded connector for the flexible pipe.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1.2 -2.2 daNmNutBRAKING SYSTEM PIPE CONNECTORSM10x1
- Fit the flexible pipe in the support housing.- Fit the retaining spring on the flexible brake pipe.- Tighten the connector for the rigid brake pipe.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1.2 -2.2 daNmNutBRAKING SYSTEM PIPE CONNECTORSM10x1
Op. 0010T65 HYDRAULIC BRAKE SYSTEM BLEED AIR- Remove the vehicle from the lift.- Check that the brakes are working and that the system is not leaking.
