3330E71 RIGID PIPE FROM CONNECTOR TO LOAD PROPORTIONING VALVE - R.R. AND BLEED AIR

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

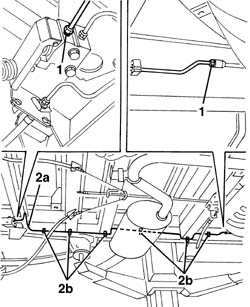

- Position the vehicle on the lift.- Raise the vehicle.1. Working underneath the vehicle, undo the connectors for the rigid brake pipe and let the hydraulic fluid drain into a suitable container.2. Remove the rigid pipe (2a) releasing it from the springs (2b).
Manual illustration 244006171
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Check that the rigid pipe is not damaged.- Position the rigid pipe and fit it to the springs.- Tighten the rigid pipe connectors.
[symbol: TORQUE 01.jpg]Value - daNmFasteningComponentØ
-1.2 - 2.2, daNmnutM10x1
Op. 0010T65 HYDRAULIC BRAKE SYSTEM BLEED AIR- Remove the vehicle from the lift.- Check that the brakes are working and that the system is not leaking.
