3340A34 RPM SENSOR (ONE) OF ONE L/H OR R/H REAR WHEEL - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Position the vehicle on the lift.- Raise the vehicle.1. Working underneath the vehicle, disconnect the electrical connection.
Manual illustration 244000463DescriptionConnector
1Left rear wheel sensor for ABSK075
Manual illustration 244000463DescriptionConnector
1Right rear wheel sensor for ABSK076

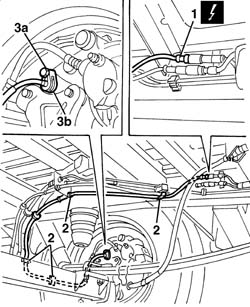

2. Release the electrical wiring for the ABS sensor from the retainers.3. Undo the bolt (3a) and remove the ABS sensor and wiring (2b).
Manual illustration 244003909
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Check that the ABS sensor and wiring is not damaged.- Position the ABS sensor in the housing.- Tighten the ABS sensor bolt.
Manual illustration 244000559Value - daNmFasteningComponentØ
.0.8BoltREAR A.B.S. SENSORM6
- Fasten the electrical wiring for the ABS sensor to the retainers.- Connect the electrical connection.
Manual illustration 244000463DescriptionConnector
.Left rear wheel sensor for ABSK075
Manual illustration 244000463DescriptionConnector
.Right rear wheel sensor for ABSK076
- Remove the vehicle from the lift.- Check the operation of the braking system using the Examiner or other diagnostic equipment.
