4450C34 BEARING OF ONE FRONT WHEEL HUB, L/H OR R/H - REPLACE WITH PILLAR REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Removing

Refitting

1. Work at the bench and, using a universal extractor (1a) and an appropriate diameter tool (1b), remove the hub (1c) from the steering knuckle.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Rotate the steering knuckle and remove the bearing circlip.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Position the steering knuckle in the press, resting on a plate (1a) with an opening in the centre that allows the bearing (1b) to be removed.2. Position the special tool on the bearing (1b).

	Description	Code	Function
2	Tool	1.874.542.000	Wheel hub bearing extraction

3. Extract the bearing (1b) from the steering knuckle on the press.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Refitting

Removing

- Check that the bearing is not damaged.1. Position the steering knuckle (1a) on the press, resting on a plate (1b).2. Position the bearing (2a) on the steering knuckle.3. Position the special tool on the bearing (2a).

	Description	Code	Function
3	Tool	1.875.057.000	Wheel hub bearing fitting

4. Fit the bearing (2a) in the housing using the press.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Fit the circlip in the housing.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

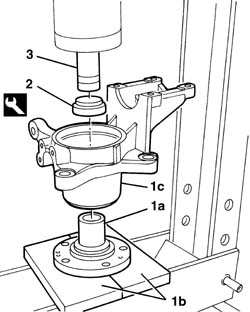

1. Position the hub (1a) on the press, resting on a plate (1b). Position the steering knuckle with the bearing (1c) on the hub (1a) and keep it in position.2. Position the special tool on the steering knuckle.

	Description	Code	Function
2	Tool	1.875.057.000	Wheel hub bearing fitting

3. Fit the steering knuckle with the bearing on the hub using the press.
