5020M30 PUMP FOR METERING FUEL TO SUPPLEMENTARY INDEPENDENT HEATER R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

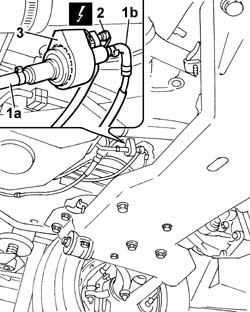

- Disconnect the negative battery terminal.- Raise the vehicle on a lift.- Position a suitable container for collecting the fuel.1. Disconnect the metering pump inlet (1a) and outlet (1b) pipes loosening the retaining bands.- Undo the bolt fixing the metering pump to the mounting bracket.2. Disconnect the electrical connector for the pump.
Manual illustration 244000463DescriptionConnector
2Additional heater electric pumpN044
3. Remove the fuel metering pump.
Manual illustration 244004199
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Connect the fuel inlet and outlet pipes to the connectors on the pump using the retaining bands.- Fasten the pump to the bodyshell tightening the fixing bolt.- Connect the electrical connector for the pump.
Manual illustration 244000463DescriptionConnector
.Additional heater electric pumpN044
- Lower the vehicle on the lift.- Connect the negative battery terminal.
