5020M34 FUEL DELIVERY PIPE TO SUPPLEMENTARY INDEPENDENT HEATER PUMP - R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Removing

Refitting

- Disconnect the negative battery terminal.- Raise the vehicle on the lift.- Position a suitable container for collecting the fuel.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

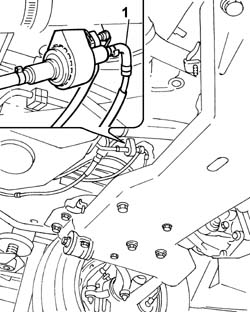

Op. 1040A10 FUEL TANK - R + R AND DECANT FUEL1. Disconnect the fuel supply pipe from the fuel pump for the additional independent heater loosening the retaining band.- Disconnect the pipe on the fuel return pipe to the tank loosening the retaining band.- Remove the fuel supply pipe to the pump.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Refitting

Removing

- Connect the pipe on the fuel return pipe to the tank using the retaining band.- Connect the pump fuel supply pipe to the additional independent heater using the retaining band.
