5040C18 RECIRCULATION AIR INTAKE UNIT RR WITH AIR CONDITIONER BOX REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Removing

Refitting

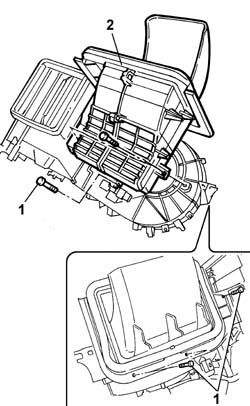

1. Undo the fixing bolts.2. Remove the recirculation air intake unit.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

1. Release the control cable (1a) from the spring (1b) and disconnect it from the recirculation air intake.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Refitting

Removing

- Connect the control cable and secure it using the special spring.- Position the recirculation air intake unit and tighten the fixing bolts.
