5040C34 FAN MOTOR - R+R WITH AIR CONDITIONER BOX REMOVED Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
EngineAll engines 2.0 16V 2.0 JTD 8V 2.3 JTD 16V 2.8 JTD 8V Print / save PDF
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Removing 1. Remove the band. 2. Disconnect the flexible condensation drainage pipe. 3. Undo the fixing bolts. 4. Remove the condensation drainage connector. Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

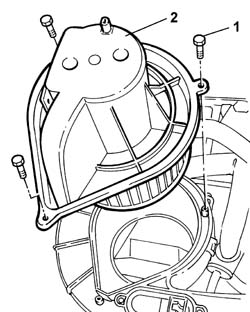

1. Undo the fixing bolts. 2. Remove the air conditioning fan. Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Refitting - Position the air conditioning fan and tighten the fixing bolts. - Position the condensation drainage connector and tighten the fixing bolts. - Connect the flexible condensation drainage pipe and secure it using a suitable band. Extracted from your eLearn disc. Original wording and values retained. Engine, equipment and production labels accompany each passage. Some original embedded symbols are unavailable and are marked in place.
