5520B10 STARTER MOTOR - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Position the vehicle on the lift. Op. 7055B54 UNDER-ENGINE GUARD - R R- Disconnect the negative battery terminal.- Raise the vehicle.1. Undo the nut (1a), remove the protective cover (1b) and disconnect the starter motor supply leads (1c).
Manual illustration 244000463DescriptionConnector
1cBatteryA001A
Manual illustration 244000463DescriptionConnector
1cAlternatorA010B

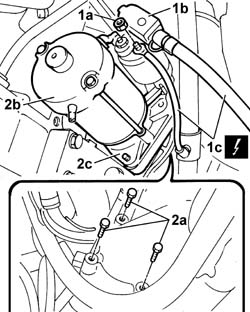

2. Undo the retaining bolts (2a) and remove the starter motor (2b), complete with spacer (2c).
Manual illustration 244004431
Engines: 2.3 JTD 16V

RefittingManual illustration 21

RemovingManual illustration 20
- Position the starter motor spacer.
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Connect the starter motor electrical wiring and close the protective cover.
Manual illustration 244000463DescriptionConnector
.AlternatorA010A
Manual illustration 244000463DescriptionConnector
.BatteryA001B
- Lower the vehicle.- Connect the negative battery terminal. Op. 7055B54 UNDER-ENGINE GUARD - R R- Remove the vehicle from the lift.
Engines: 2.3 JTD 16V, 2.8 JTD 8V
- Fit the starter motor and tighten the retaining bolts to torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.2BoltSTARTER MOTORM8
Engines: 2.0 JTD 8V
- Fit the starter motor and tighten the retaining bolts to torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.4.5BoltSTARTER MOTORM8
Engines: 2.0 16V
- Fit the starter motor and tighten the retaining bolts to torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.2BoltSTARTER MOTORM8
