Procedures
7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Loosen the bolts (1a) fixing the door check strap (1b).
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Loosen the bolts (1a) fixing the door striker (1b).
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

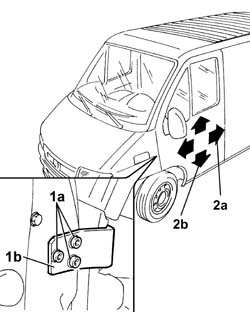

1. Loosen the bolts (1a) fixing the door hinges (1b), door side.2. Adjust the door in lengthwise direction (2a) and vertical direction (2b) until the correct fitting position is achieved.
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- When the adjustment is completed, proceed with tightening the bolts fixing the door side door hinges and the door lock striker bolts to torque.
- Tighten the bolts fixing the door check strap to torque.
 | Value - daNm | Fastening | Component | Ø |
|---|---|---|---|---|
| . | 2,4 | - | STRIKER ON FRONT SIDE DOOR PILLAR | - |
| Value - daNm | Fastening | Component | Ø |
|---|---|---|---|---|
| . | (door) 3 | Bolt | FRONT SIDE DOOR HINGES | M8 |
| Value - daNm | Fastening | Component | Ø |
|---|---|---|---|---|
| . | (door) 1.2 | Bolt | FRONT DOOR OPENING LIMITER | M6 |
