7005C67 FRONT SIDE DOOR SAFETY CATCH LINK R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 7005C53 INTERIOR OPENING HANDLE - R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005E22 L/H OR R/H FRONT DOOR PANEL RADIO GRILLE (ONE) - R+R Op. 5570T90 FRONT SPEAKER - R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

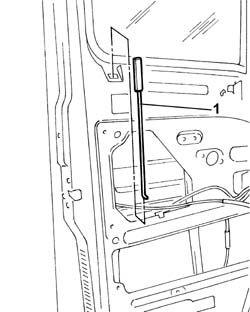

Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE-R R Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R Op. 7005E30 OBJECT POUCH ON ONE FRONT SIDE DOOR R R Op. 7005E08 FRONT SIDE DOOR INTERIOR PANEL R R Op. 7005A05 FRONT SIDE DOOR WATER GUARD PROTECTION R R OR ARRANGE- Release the device from the lock.1. Remove the front side door safety device rod.
Manual illustration 244004579
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the rod in the special housing.- Attach the lower end of the rod to the lock. Op. 7005A05 FRONT SIDE DOOR WATER GUARD PROTECTION R R OR ARRANGE Op. 7005E08 FRONT SIDE DOOR INTERIOR PANEL R R Op. 7005E30 OBJECT POUCH ON ONE FRONT SIDE DOOR R R Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE-R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 5570T90 FRONT SPEAKER - R R Op. 7005E22 L/H OR R/H FRONT DOOR PANEL RADIO GRILLE (ONE) - R+R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005C53 INTERIOR OPENING HANDLE - R R- Connect the negative battery terminal.
