7005C70 LINK AND KNOB FOR FRONT SIDE DOOR SAFETY CATCH - R R WITH DOOR PANEL REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
1. Remove the water shield.
Manual illustration 244004580
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

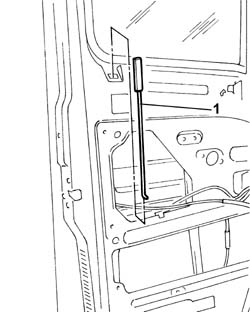

- Disconnect the rod from the lock.1. Remove the front side door safety device rod.
Manual illustration 244004581
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the safety device rod in the special housing in the door frame.- Secure the safety device rod to the lock.- Clean the area where the water shield is fixed to the door frame in order to remove any residues and make sure that the shield sticks properly.- Secure a new water shield to the door frame.
