7005D22 FRONT SIDE DOOR DESCENDING WINDOW GLASS GUIDE (ONE) - R R WITH DOOR PANEL (AND SUPPORT FRAME) REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
1. Remove the water shield.
Manual illustration 244004584
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

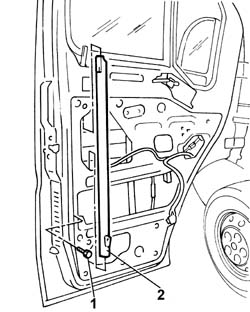

1. Undo the bolt fixing the descending window glass guide.2. . Remove the descending window glass guide.
Manual illustration 244004585
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Insert the guide in the special housing in the door frame.- Secure the guide to the door frame tightening the fixing bolts.- Clean the area where the water shield is fixed to the door frame in order to remove any residues and make sure that the shield sticks properly.- Fasten a new water shield to the door frame.
