7005M21 FRONT SIDE DOOR ELECTRICALLY OPERATED WINDOW - R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 7005C53 INTERIOR OPENING HANDLE - R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005E22 L/H OR R/H FRONT DOOR PANEL RADIO GRILLE (ONE) - R+R Op. 5570T90 FRONT SPEAKER - R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

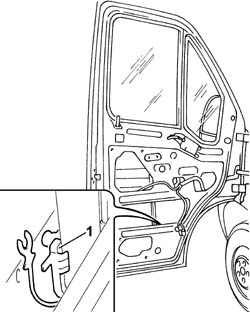

Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE-R R Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R Op. 7005E30 OBJECT POUCH ON ONE FRONT SIDE DOOR R R Op. 7005E08 FRONT SIDE DOOR INTERIOR PANEL R R Op. 7005A05 FRONT SIDE DOOR WATER GUARD PROTECTION R R OR ARRANGE Op. 7005D23 FRONT SIDE DOOR DESCENDING WINDOW GLASS GUIDE ONE R R- Lower the window.1. Release the window from the lower supporting clip.
Manual illustration 244004597
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Completely raise the window (1a) and keep it secured in position using suitable equipment (1b).
Manual illustration 244004598
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Disconnect the electrical connector for the window opening mechanism motor.
Manual illustration 244000463DescriptionConnector
1Left front electric window motorN060
Manual illustration 244000463DescriptionConnector
1Right front electric window motorN061
2. Undo the window opening mechanism fixing bolts.
Manual illustration 244004599
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Remove the window opening mechanism from the door frame.
Manual illustration 244004600
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Insert the window opening mechanism in the special housing in the door frame.- Fasten the window opening mechanism to the door frame tightening the fixing bolts.- Connect the electrical connector for the window opening mechanism motor.
Manual illustration 244000463DescriptionConnector
.Left front electric window motorN060
Manual illustration 244000463DescriptionConnector
.Right front electric window motorN061
- Lower the window and secure it to the lower window opening mechanism supporting clip.- Completely raise the window. Op. 7005D23 FRONT SIDE DOOR DESCENDING WINDOW GLASS GUIDE ONE R R Op. 7005A05 FRONT SIDE DOOR WATER GUARD PROTECTION R R OR ARRANGE Op. 7005E08 FRONT SIDE DOOR INTERIOR PANEL R R Op. 7005E30 OBJECT POUCH ON ONE FRONT SIDE DOOR R R Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE-R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 5570T90 FRONT SPEAKER - R R Op. 7005E22 L/H OR R/H FRONT DOOR PANEL RADIO GRILLE (ONE) - R+R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005C53 INTERIOR OPENING HANDLE - R R- Connect the negative battery terminal.
