FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

7005N20 FRONT SIDE DOOR LOCK MOTOR/CATCH ASSEMBLY - RR WITH DOOR PANEL AND SUPPORT FRAME REMOVED

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
1. Remove the water shield.
Manual illustration 244004601
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

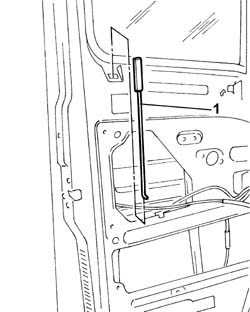

- Release the safety rod from the lock.1. Remove the front side door safety device rod.
Manual illustration 244004602
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

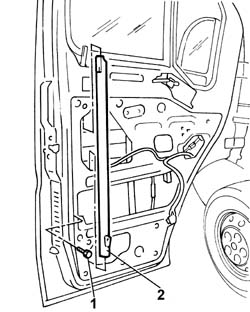

1. Undo the bolt fixing the descending window glass guide.2. Remove the guide.
Manual illustration 244004603
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the bolts fixing the door inner opening idler.- Disconnect the flexible cable from the device.2. Remove the inner door opening idler.- Release the flexible cable from the door opening idler device mounting bracket.- Release the flexible cable from the door frame.
Manual illustration 244004604
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Remove the lock fastening spring.2. Remove the lock.
Manual illustration 244004605
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the bolts fixing the lock.
Manual illustration 244004606
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Release the lock from the door frame.1. Disconnect the electrical connector for the lock.
Manual illustration 244000463DescriptionConnector
1Left front door lock geared motorN050
Manual illustration 244000463DescriptionConnector
1Right front door lock geared motorN051
2. Disconnect the flexible cable from the lock.
Manual illustration 244004607
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Connect the flexible cable to the lock.- Connect the electrical connector for the lock.
Manual illustration 244000463DescriptionConnector
.Left front door lock geared motorN050
Manual illustration 244000463DescriptionConnector
.Right front door lock geared motorN051
- Insert the lock in the special housing in the door frame.- Fasten the lock to the door frame tightening the fixing bolts to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1,5BoltFRONT DOOR LOCK MECHANISMM8
- Insert the lock barrel in the special housing in the door and in the lock.- Secure the lock barrel to the door frame using the fastening spring.- Fit the flexible cable inside the door frame.- Secure the flexible cable to the door opening idler device mounting bracket.- Secure the flexible cable to the door opening idler.- Fit the door opening idler device to the door tightening the fixing bolts.- Position the guide in the housing and secure it to the door frame tightening the fixing bolts.- Insert the safety rod in the special housing and connect it to the door lock.- Clean the area where the water shield is fastened to the door frame to remove any residues and ensure that the shield sticks properly.- Fasten a new water shield to the door frame.
