7005N21 FRONT SIDE DOOR LOCK MOTOR-LOCK ASSEMBLEY-R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 7005C53 INTERIOR OPENING HANDLE - R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005E22 L/H OR R/H FRONT DOOR PANEL RADIO GRILLE (ONE) - R+R Op. 5570T90 FRONT SPEAKER - R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

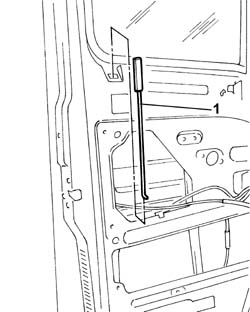

Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE-R R Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R Op. 7005E30 OBJECT POUCH ON ONE FRONT SIDE DOOR R R Op. 7005E08 FRONT SIDE DOOR INTERIOR PANEL R R Op. 7005A05 FRONT SIDE DOOR WATER GUARD PROTECTION R R OR ARRANGE- Release the safety rod from the lock.1. Remove the front side door safety device rod.
Manual illustration 244004608
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the bolt fixing the descending window glass guide.2. Remove the guide.
Manual illustration 244004609
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005C51 FRONT SIDE DOOR INNER CATCH DEVICE - R+R FOR REPAIR OR REPLACEMENT- Release the flexible cable from the door opening idler mounting bracket.- Release the flexible cable from the door frame.1. Remove the plate fixing spring.2. Remove the plate.
Manual illustration 244004610
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the bolts fixing the lock.
Manual illustration 244004611
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Release the lock from the door frame.1. Disconnect the electrical connector for the lock.
Manual illustration 244000463DescriptionConnector
1Left front door lock geared motorN050
Manual illustration 244000463DescriptionConnector
1Right front door lock geared motorN051
2. Disconnect the flexible cable from the lock.
Manual illustration 244004612
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Connect the flexible cable to the lock.- Connect the electrical connector for the lock.
Manual illustration 244000463DescriptionConnector
.Left front door lock geared motorN050
Manual illustration 244000463DescriptionConnector
.Right front door lock geared motorN051
- Fit the lock in the special housing in the door frame.- Fasten the lock to the door frame tightening the fixing bolts to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1,5BoltFRONT DOOR LOCK MECHANISMM8
- Fit the lock barrel in the special housing in the door and in the lock.- Secure the lock barrel to the door frame using the fastening spring.- Insert the flexible cable inside the door frame.- Secure the flexible cable to the door opening idler mounting bracket. Op. 7005C51 FRONT SIDE DOOR INNER CATCH DEVICE - R+R FOR REPAIR OR REPLACEMENT- Insert the safety rod in the special housing and connect it to the door lock. Op. 7005A05 FRONT SIDE DOOR WATER GUARD PROTECTION R R OR ARRANGE Op. 7005E08 FRONT SIDE DOOR INTERIOR PANEL R R Op. 7005E30 OBJECT POUCH ON ONE FRONT SIDE DOOR R R Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R Op. 7005E38 FRONT SIDE DOOR INTERIOR HANDLE-R R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 5570T90 FRONT SPEAKER - R R Op. 7005E22 L/H OR R/H FRONT DOOR PANEL RADIO GRILLE (ONE) - R+R
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 7005C53 INTERIOR OPENING HANDLE - R R- Connect the negative battery terminal.
