7025A34 BONNET LID LOCK (ONE) - R+R OR REPAIR

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
Op. 7055A42 FRONT GRILLE - R+R1. Undo the nuts fixing the lock to the crossmember.2. Disconnect the bonnet release cable from the lock.3. Remove the bonnet lid catch.

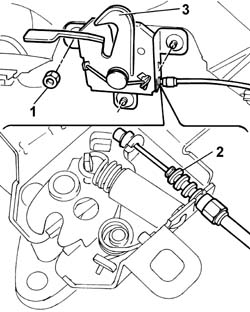

Manual illustration 244004660
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Connect the bonnet release cable to the lock.- Fit the bonnet catch by screwing in the bolts without tightening.- Adjust the position of the lock both longitudinally and vertically. Op. 7055A42 FRONT GRILLE - R+R- Check that the lock and the control system are working.
