7040A23 FRAME OF INSTRUMENT PANEL ON FACIA - R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21

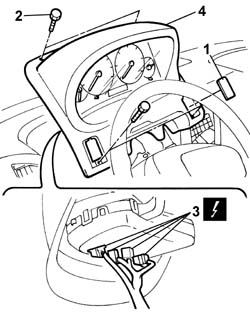

- Disconnect the negative battery terminal. Op. 5540C18 HEADLAMP/LIGHT CLUSTER ALIGNMENT CORRECTION MOTOR SWITCH - R+R- Tilt the steering wheel.1. Remove the surround.2. Undo the fixing bolts.3. Disconnect the connections.
Manual illustration 244000463DescriptionConnector
3Instrument panelE050A
Manual illustration 244000463DescriptionConnector
3Instrument panelE050B
Manual illustration 244000463DescriptionConnector
3Instrument panelE050C
Manual illustration 244000463DescriptionConnector
3Instrument panelE050D
Manual illustration 244000463DescriptionConnector
3Instrument panelE050E
4. Remove the instrument panel surround complete with instrument panel.
Manual illustration 244004683
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the fixing bolts.2. Separate the instrument panel (2a) from the surround (2b).
Manual illustration 244004684
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Position the instrument panel in the surround and tighten the fixing bolts.- Connect the electrical connections.
Manual illustration 244000463DescriptionConnector
.Instrument panelE050A
Manual illustration 244000463DescriptionConnector
.Instrument panelE050B
Manual illustration 244000463DescriptionConnector
.Instrument panelE050C
Manual illustration 244000463DescriptionConnector
.Instrument panelE050D
Manual illustration 244000463DescriptionConnector
.Instrument panelE050E
- Position the instrument panel surround and tighten the fixing bolts.- Position the trim removed previously. Op. 5540C18 HEADLAMP/LIGHT CLUSTER ALIGNMENT CORRECTION MOTOR SWITCH - R+R- Connect the negative battery terminal.
