Procedures

7045A11 DRIVER'S FRONT SEAT WITH HANDBRAKE LEVER - R.R.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Removing

1. Undo the bolts fixing the handbrake lever mounting bracket.- Move the handbrake lever aside.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

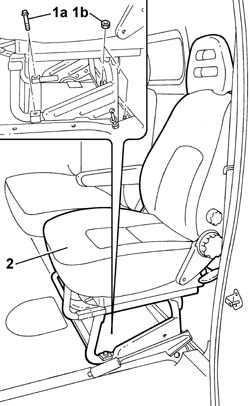

1. Undo the front bolts (1a) and rear nuts (1b) fixing the seat.2. Remove the driver's seat.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

- Position the seat in the housing.- Secure the seat tightening the front bolts and rear nuts to the recommended torque.

[symbol: TORQUE 01.jpg]	Value - daNm	Fastening	Component	Ø
-	5.5 daNm	bolt	Seat fastening to passenger compartment floor (front)	M12 X 1.25

[symbol: TORQUE 02.jpg]	Value - daNm	Fastening	Component	Ø
-	5.5 daNm	nut	Seat fastening to passenger compartment floor (rear)	M12 X 1.25

- Fasten the handbrake lever to the seat tightening the fixing bolts to the recommended torque.

[symbol: TORQUE 03.jpg]	Value - daNm	Fastening	Component	Ø
-	2 daNm	bolt	Fastening to driver's seat frame	M8
