7065A10 FRONT SEAT BELT ONE LH OR RH R R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
Op. 7040H36 CENTRAL TRIM LOWER ELEMENT - R R- Release the seat belt height adjustment knob.- Remove the seat belt idler cover.1. Undo the nut fixing the seat belt idler.2. Undo the bolt fixing the seat belt reel.3. Remove the seat belt.

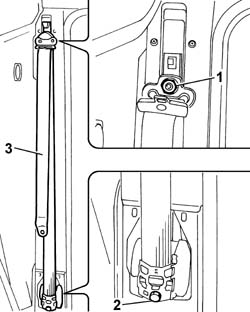

Manual illustration 244004747
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Insert the seat belt reel in the special housing.- Secure the reel to the pillar tightening the fixing bolt to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.4BoltREEL FOR FRONT SEAT BELT7/16"
- Secure the seat belt upper idler seal tightening the nut to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.4NutFRONT SEAT BELT IDLER-
- Fit the cover on the seat belt upper fixing nut.- Fasten the seat belt height adjustment knob. Op. 7040H36 CENTRAL TRIM LOWER ELEMENT - R R
