7065C10 AIR CONDITIONING CONTROL PANEL - R+R

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 7040A78 RADIO COMPARTMENT BOX R R Op. 7040A72 UPPER CENTRAL DOCUMENT HOLDER ON DASHBOARD - R.R . Op. 7065C42 ASHTRAY (ONE) R+R- Remove the air recirculation control cursor.1. Undo the fixing bolts.2. Disconnect the electrical connections for the signal and service switches support.
Manual illustration 244000463DescriptionConnector
2Switch control panelH090A
Manual illustration 244000463DescriptionConnector
2Switch control panelH090B
Manual illustration 244000463DescriptionConnector
2Steering column switch unitH005C
Manual illustration 244000463DescriptionConnector
2Switch control panelH090D
3. Disconnect the electrical connection for the air conditioning on switch.
Manual illustration 244000463DescriptionConnector
3Climate control sytem control unitM070

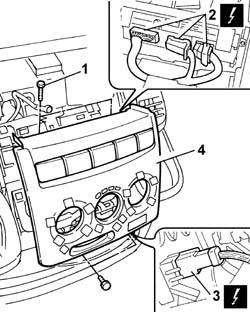

4. Remove the switch trim complete with control panel and air conditioning on switch.
Manual illustration 244004750
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the fixing bolts.2. Remove the control panel.
Manual illustration 244004751
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the fixing bolts.2. Remove the air conditioning on switch
Manual illustration 244004752
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Position the air conditioning on switch and tighten the fixing bolts.- Position the control panel and tighten the fixing bolts.- Connect the electrical connections.
Manual illustration 244000463DescriptionConnector
.Climate control sytem control unitM070
Manual illustration 244000463DescriptionConnector
.Switch control panelH090A
Manual illustration 244000463DescriptionConnector
.Switch control panelH090B
Manual illustration 244000463DescriptionConnector
.Switch control panelH090C
Manual illustration 244000463DescriptionConnector
.Switch control panelH090D
- Position the switch trim and tighten the fixing bolts.- Position the air recirculation control cursor. Op. 7065C42 ASHTRAY (ONE) R+R Op. 7040A72 UPPER CENTRAL DOCUMENT HOLDER ON DASHBOARD - R.R . Op. 7040A78 RADIO COMPARTMENT BOX R R- Connect the negative battery terminal.
