7210E10 R.R. FRONT BUMPER

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Disconnect the negative battery terminal. Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R- < R1 > [both sides]1. Undo the fixing bolts.2. Remove the front grille.
Manual illustration 244004769
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Disconnect the electrical connection (1a) for fog lights (1b).
Manual illustration 244000463DescriptionConnector
1aLeft fog lampF015
Manual illustration 244000463DescriptionConnector
1aRight fog lampF016
Manual illustration 244004772
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

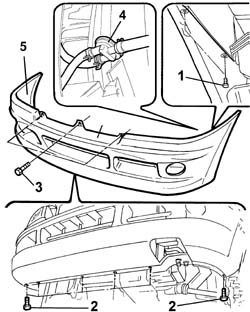

1. Undo the bolts fixing the front bumper to the front wings.2. Undo the bolts fixing the front bumer to the lower radiator supporting crossmember.- Lower the lift.3. Undo the bolts securing the bumper to the upper crossmember.4. Disconnect the headlamp washer jets water supply pipe.5. Remove the front bumper from the vehicle.
Manual illustration 244004773
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the front bumper on the vehicle.- Connect the headlamp washer jets water supply pipe.- Tighten the bolts securing the bumper to the upper crossmember.- Raise the lift.- Tighten the bolts fixing the front bumer to the lower radiator supporting crossmember.- Tighten the bolts fixing the front bumper to the front wings.- Connect the electrical connection for the fog lights.
Manual illustration 244000463DescriptionConnector
.Left fog lampF015
Manual illustration 244000463DescriptionConnector
.Right fog lampF016
- Fit the front grille and tighten the bolts. Op. 7055B54 UNDER-ENGINE GUARD - R R Op. 7055B64 LH OR RH REFLECTOR(ONE) ON REAR BUMPERS - R R- < R1 > [both sides] Op. 4450B12 FRONT OR REAR WHEELS (TWO) - R+R- Connect the negative battery terminal.
