FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

7210E50 REAR WING LOWER REINFORCEMENT

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
- Close the tailgate to facilitate the operations.- Support the tailgate.1. Undo the bolts fixing the centre sliding pulley and remove it from the tailgate.
Manual illustration 244004799
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the bolts fixing the mounting bracket to the lower sliding pulley.
Manual illustration 244004800
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Remove the tailgate releasing it from the upper guide.
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20

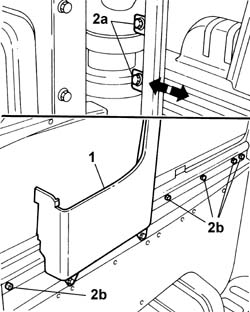

- Position the tailgate fitting the upper pulley in the guide.- Screw in the bolts fixing the mounting bracket to the lower sliding pulley without tightening them.- Position the centre pulley on the tailgate and screw in the fixing bolts without tightening them.1. Remove the oddments pocket (if fitted).2. Loosen the front bolts (2a) and the inner bolts (2b) fixing the sliding guide and adjust the lengthwise position.
Manual illustration 244004801
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the bolts fixing the sliding guide.- Fit the oddments pocket.1. Loosen the bolts fixing the centre pulley (1a) and the mounting bracket to the lower pulley (1b) and adjust the vertical position.
Manual illustration 244004802
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the bolts fixing the mounting bracket to the lower sliding pulley to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.2.4 daNmBoltSLIDING DOOR SUPPORTS/PINSM8
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the bolts fixing the centre pulley to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.4.0 daNmBoltCENTRAL FIXED DOORM10
1. Loosen the bolts fixing the upper pulley (1a) and the bolts fixing the mounting bracket to the lower pulley (1b) and adjust the alignment.
Manual illustration 244004805
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the bolts fixing the mounting bracket to the lower sliding pulley to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.2.4 daNmBoltSLIDING DOOR SUPPORTS/PINSM8
- Tighten the bolt fixing the upper pulley to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.2.4 daNmBoltSLIDING DOOR SUPPORTS/PINSM8
- Completely open the tailgate.1. Loosen the bolt fixing the ratchet gear, adjust the position of the locking device and retighten the fixing bolt.2. Tighten the adjustment screw (to reduce) or loosen it (to increase) the load.
Manual illustration 244004808
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Loosen the bolts fixing the front striker to the bodyshell and adjust the position.
Manual illustration 244004809
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the fixing bolts.1. Loosen the bolts fixing the front striker to the bodyshell and adjust the position of the front pins.
Manual illustration 244004810
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the fixing bolts.1. Loosen the bolts fixing the rear side striker to the tailgate bodyshell and adjust the position.
Manual illustration 244004811
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the fixing bolts to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.1.6 daNmBoltSLIDING DOOR STRIKER ON CENTRAL PILLARM8
1. Loosen the bolts fixing the lock striker to the bodyshell and adjust the position.
Manual illustration 244004813
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
- Tighten the fixing bolts to the recommended torque.
Manual illustration 244000559Value - daNmFasteningComponentØ
.5.0 daNmBoltSLIDING DOOR LOCK STRIKERM12
