Underbody typical measurements
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Diagram for checking underbody
This chapter is designed to highlight the typical vehicle measurements in order to work correctly when carrying out repairs and produce the best possible results. The comparative measurements, expressed in millimetres, may be subject to differences (of around 2mm) which the experienced mechanic will be able to interpret and establish whether they are due to any impact or to manufacturing tolerances.Diagram for checking underbody: short wheelbase

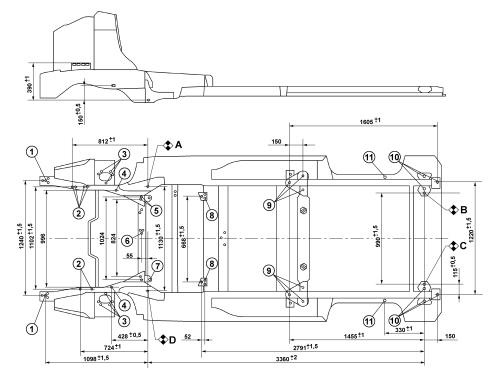

The underbody for short wheelbase versions is illustrated in the diagram below
A left front main opening
B left rear main opening
C right rear main opening
D right front main opening
1 lower front crossmember fastening
2 engine fastenings
3 shock absorber attachment mounting fastening 3 openings
4 suspension frame front fastening
5 suspension frame rear fastening
6 fuel tank centre fastening
7 fuel tank side front fastening
8 fuel tank rear fastening
9 rear suspension front fastenings
10 rear suspension rear fastenings
11 shock absorber fastening
Diagram for checking underbody: medium wheelbase
The underbody for medium wheelbase versions is illustrated in the diagram below
A left front main opening
B left rear main opening
C right rear main opening
D right front main opening
1 lower front crossmember fastening
2 engine fastenings
3 shock absorber attachment mounting fastening 3 openings
4 suspension frame front fastening
5 suspension frame rear fastening
6 fuel tank centre fastening
7 fuel tank side front fastening
8 fuel tank rear fastening
9 rear suspension front fastenings
10 rear suspension rear fastenings
11 shock absorber fastening
Diagram for checking underbody: long wheelbase
The underbody for long wheelbase versions is illustrated in the diagram below
A left front main opening
B left rear main opening
C right rear main opening
D right front main opening
1 lower front crossmember fastening
2 engine fastenings
3 shock absorber attachment mounting fastening 3 openings
4 suspension frame front fastening
5 suspension frame rear fastening
6 fuel tank centre fastening
7 fuel tank side front fastening
8 fuel tank rear fastening
9 rear suspension front fastenings
10 rear suspension rear fastenings
11 shock absorber fastening
