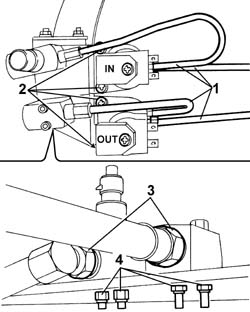

1. Undo the connectors and remove the LPG pipes from the tank and the connector pipes.2. Undo the fixing bolts and remove the solenoid valves.3. Undo the connectors and remove the LPG pipes to the injectors.4. Undo the fixing nuts and remove couplings G4 and G5.
1. Fit the solenoid valves on the special bracket making sure they are in the position marked on their removal and tighten the fixing bolts.2. Connect the LPG pipes from the tank making sure that they are in the position marked on their removal and tighten the connectors to the recommended torque.
[symbol: coppie.tif]
Value daNm
Fastening
Component
Ø
-
1.5
Connector
M10 X 1
3. Connect the connector pipes making sure that they are in the position marked on their removal and tighten the connectors to the recommended torque.
[symbol: coppie.tif]
Value daNm
Fastening
Component
Ø
-
1.5
Connector
M10 X 1
Engines: 2.0 16V

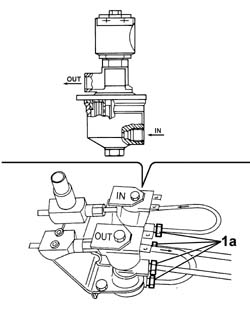

1. Fit couplings G4 and G5 and tighten the fixing nuts to the recommended torque.
[symbol: coppie.tif]
Value daNm
Fastening
Component
Ø
-
0.9
Nut
M6 X 1
[symbol: coppie.tif]
Value daNm
Fastening
Component
Ø
-
0.6
Nut
M5 X 1
2. Connect the connector pipes and tighten the connectors to the recommended torque.
[symbol: coppie.tif]
Value daNm
Fastening
Component
Ø
-
1.5
Connector
M10 X 1
3. Connect the LPG pipes to the injectors and tighten the connectors to the recommended torque.
