FIAT / DUCATO 244eLearn workshop manual · English · Offline edition
Procedures

1057B20 LPG/G SWITCH

Engines: 2.0 16V
Engines: 2.0 16V

RemovingManual illustration 20

RefittingManual illustration 21
Disconnect the negative battery terminal.1. Release the left side vent.2. Undo the bolts fixing the LPG/petrol selector switch to the trim.3. Disconnect the electrical connection.4. Remove the LPG/petrol selector switch from the housing in the trim.

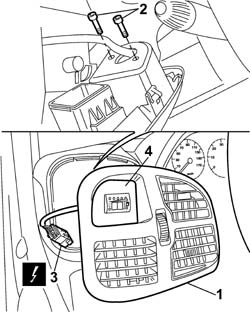

Manual illustration 244006874
Engines: 2.0 16V

RefittingManual illustration 21

RemovingManual illustration 20
Fit the LPG/petrol selector switch and tighten the fixing bolts.Connect the electrical connection for the switch.Fit the left side vent and check that it is secured.Connect the negative battery terminal.
