1042A16 CNG CYLINDER UNIT - R R

Engines: 2.0 16V

Removing

Refitting

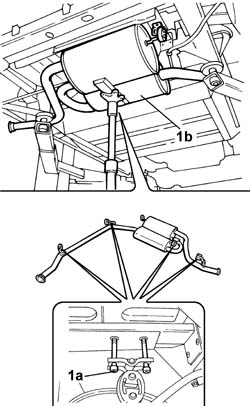

Position the vehicle on the lift.Op. 1042E60 CNG CYLINDER UNIT PROTECTION SEAL - R RProceed with draining the high pressure circuit following the instructions in the specific operation:Op. 1042A02 METHANE SYSTEM SAFETY SET UPOp. 1042A50 PIPE (1) CONNECTING CNG RECHARGING SYSTEM SOLENOIDS - R R[All]Position a hydraulic device underneath the exhaust pipe to support it.1. Undo the bolts (1a) fixing the exhaust silencer (1b) and secure the exhaust pipe.Remove the hydraulic support positioned previously.

Engines: 2.0 16V

1. Fit the tool (1a) for supporting the canisters using the tool (1b) as illustrated in the diagram.

[symbol: 770.jpg]	Description	Code	Function
1a	Support	1.870.732.000	CNG canister removal

[symbol: 770.jpg]	Description	Code	Function
1b	Support	1.870.862.000	CNG canister support tool fastening base

Position the tools on a hydraulic lift and position it under the canisters.2. Undo the spacers (2a) and the fixing nuts (2b).3. Lower the hydraulic lift and remove the CNG canisters (3a) complete with mounting brackets (3b).Remove the canisters from the support tool.

Engines: 2.0 16V

Refitting

Removing

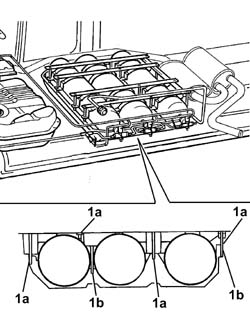

Position the canisters on the support tool.Raise the hydraulic support and place the canisters complete with mounting brackets in the special housing.Tighten the canister mounting bracket fixing nuts.1. Tighten the fixing nuts (1a) and (1b) to torque and then the spacers securing the CNG canister brackets to the bodyshell.

[symbol: 774.jpg]	Value daNm	Fastening	Component	Ø
1a	4	Nut	CNG CYLINDER MOUNT	M12

[symbol: 770.jpg]	Value daNm	Fastening	Component	Ø
1b	8	Nut	CNG CYLINDER MOUNT	M12
