2125C32 GEARBOX HAND CONTROL SUPPORT - R.R.

Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RemovingManual illustration 20

RefittingManual illustration 21
Op. 7045A11 DRIVER'S FRONT SEAT WITH HANDBRAKE LEVER - R.R.1. Undo the retaining bolts.2. Remove the lower dashboard trim.3. Undo the retaining bolts.4. Remove the lower steering column trim.
Manual illustration 244005588
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
Op. 2125C24 GEAR LEVER KNOB - R + R Op. 2125C26 LEVER/KNOB COVER - R+R FOR VERSIONS WITH REVERSE ENGAGEMENT DEVICE1. Undo the retaining bolts.2. Remove the dashboard gear lever trim.
Manual illustration 244005589
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Using a spanner, slightly rotate and release the ends of the gear selector and engagement cables.2. Remove the springs securing the cables to the support.
Manual illustration 244005590
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Undo the retaining bolts.2. Remove the dashboard trim on the floor.- Remove the two gear selector and engagement cables downwards, releasing them from the area of the support.
Manual illustration 244005591
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V
1. Open the ashtray in the dashboard and undo the upper (1a) and lower (1b) fixing bolts.2. Disconnect the electrical connection for the cigar lighter.
[symbol: elettrico 01.jpg]DescriptionConnector
2Cigar lighterP050
3. Remove the ashtray from the dashboard.
Manual illustration 244005593
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

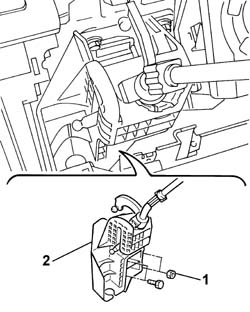

1. Undo the nuts and the bolts fixing the support to the dashboard crossmember.2. Remove the gearbox hand control support.
Manual illustration 244005594
Engines: 2.0 16V, 2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

RefittingManual illustration 21

RemovingManual illustration 20
- Fit the gearbox hand control support.- Tighten the nuts and the bolts fixing the support to the dashboard crossmember.- Fit the ashtray in the housing in the dashboard.- Connect the electrical connection for the cigar lighter.
[symbol: elettrico 02.jpg]DescriptionConnector
-Cigar lighterP050
- Tighten the upper and lower fixing bolts and close the ashtray.- Connect the ends of the cables to the gear lever support and secure them fitting the springs.- Fit the dashboard gear lever trim. Op. 2125C26 LEVER/KNOB COVER - R+R FOR VERSIONS WITH REVERSE ENGAGEMENT DEVICE Op. 2125C24 GEAR LEVER KNOB - R + R- Fit the steering column lower cover and tighten the fixing bolts.- Fit the dashboard lower trim and tighten the fixing bolts. Op. 7045A11 DRIVER'S FRONT SEAT WITH HANDBRAKE LEVER - R.R.
